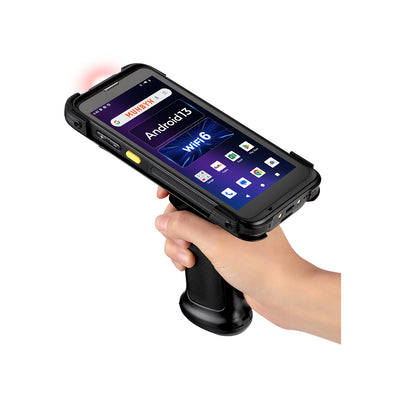

101P Barcode Scanner
101P Barcode Scanner
£509.99

Product details

Product Specifications
FeatureDetails

Model

IPDA101P

Product Dimensions

160.0 × 76.0 × 15.5 mm / 6.3 × 2.99 × 0.61 in

Item Weight (g)

287 g / 10.12 oz (with battery)

Operating System

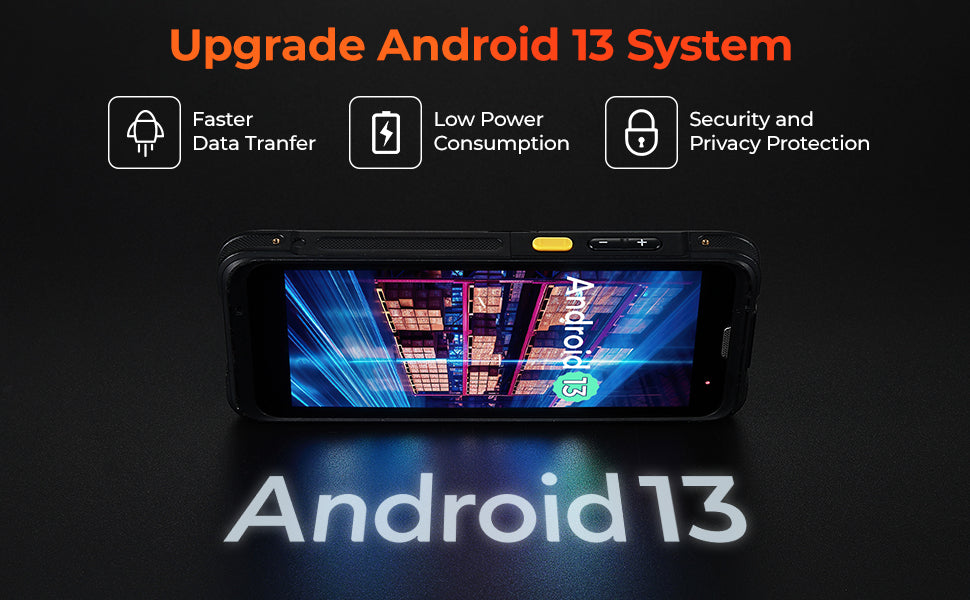

Android 13 (Android 11 Optional)

CPU

Qualcomm 2.0 GHz Octa-core

Display Screen

5.5-inch HD display (18:9), IPS LTPS 1440 × 720; Screen brightness: 450-500nit

Touch Panel

Corning Gorilla Glass, multi-touch, gloves & wet hands supported

RAM + ROM

3 GB + 32 GB

Expand Memory

Supports up to 128 GB Micro SD card

2D Imager Scanner

Zebra: SE4710; Honeywell: N6603; N6703

1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

WLAN

  • Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v/ax,2.4G,5G dual-band, IPV4, IPV6, 5G PA
  • Fast roaming: PMKID caching, 802.11r, OKC
  • Operating Channels: 2.4G(channel 1~13)
  • 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;
    Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC, etc.

WWAN

  • 2G: 850/900/1800/1900 MHz
  • 3G: 850/900/1900/2100 MHz
  • 4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38

Vo-LTE

Support Vo-LTE HD video voice call

Bluetooth

Bluetooth 5.1

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

NFC

  • Frequency 13.56MHz
  • Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
  • Chips M1 card (S50, S70), CPU card, NFC tags, etc.
  • Range 2-4 cm

Camera

Rear 13 MP Autofocus with flash

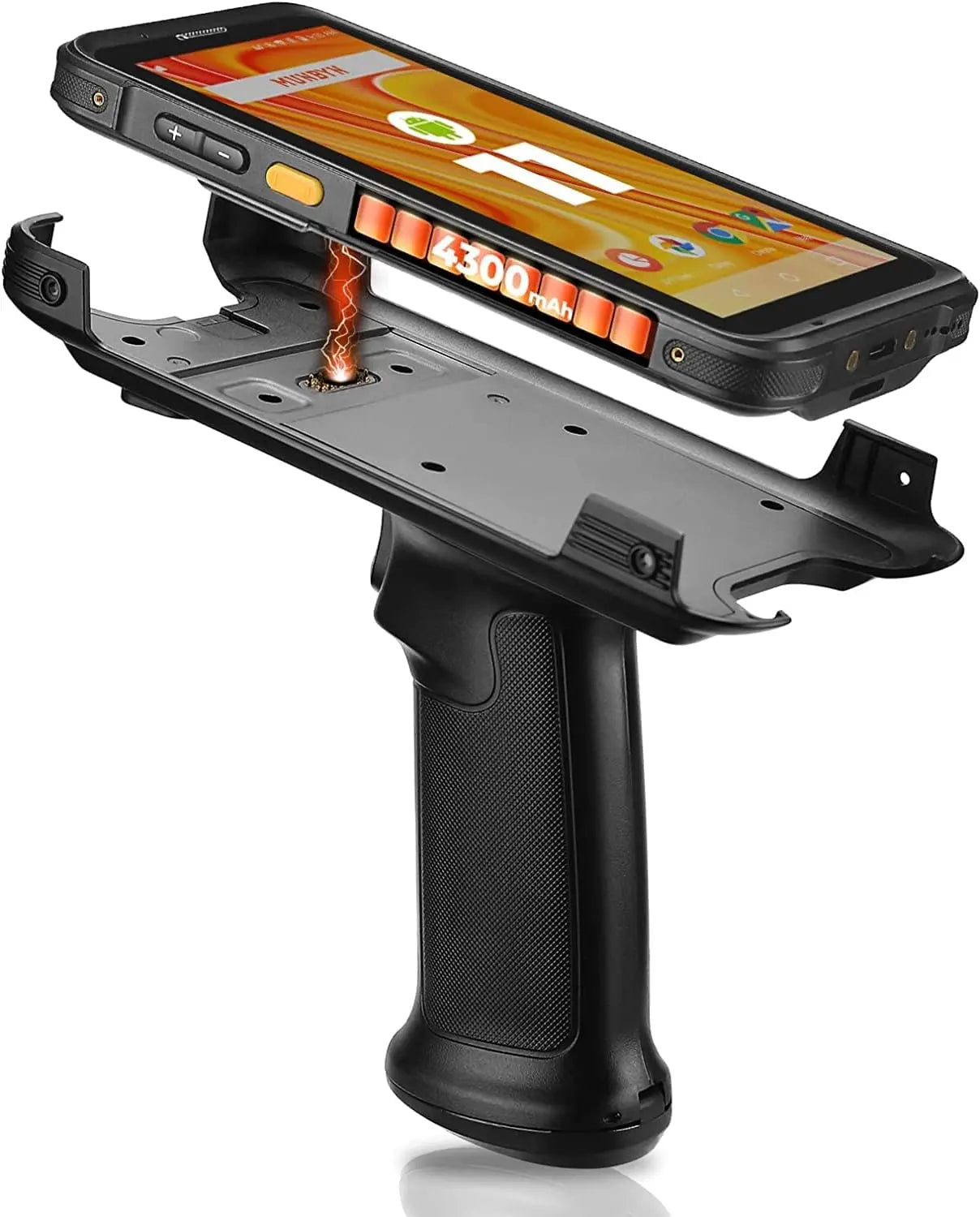

Battery Capacity

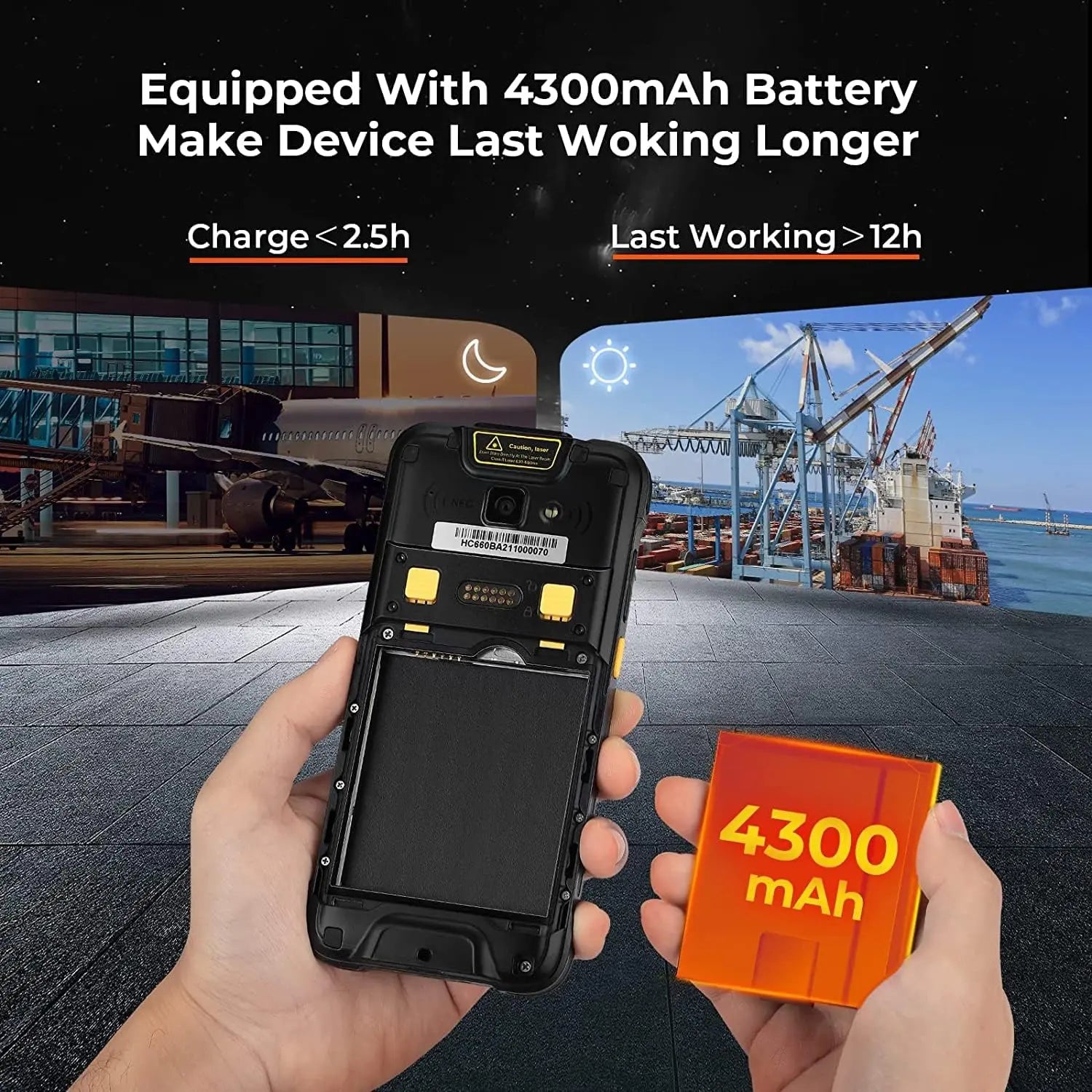

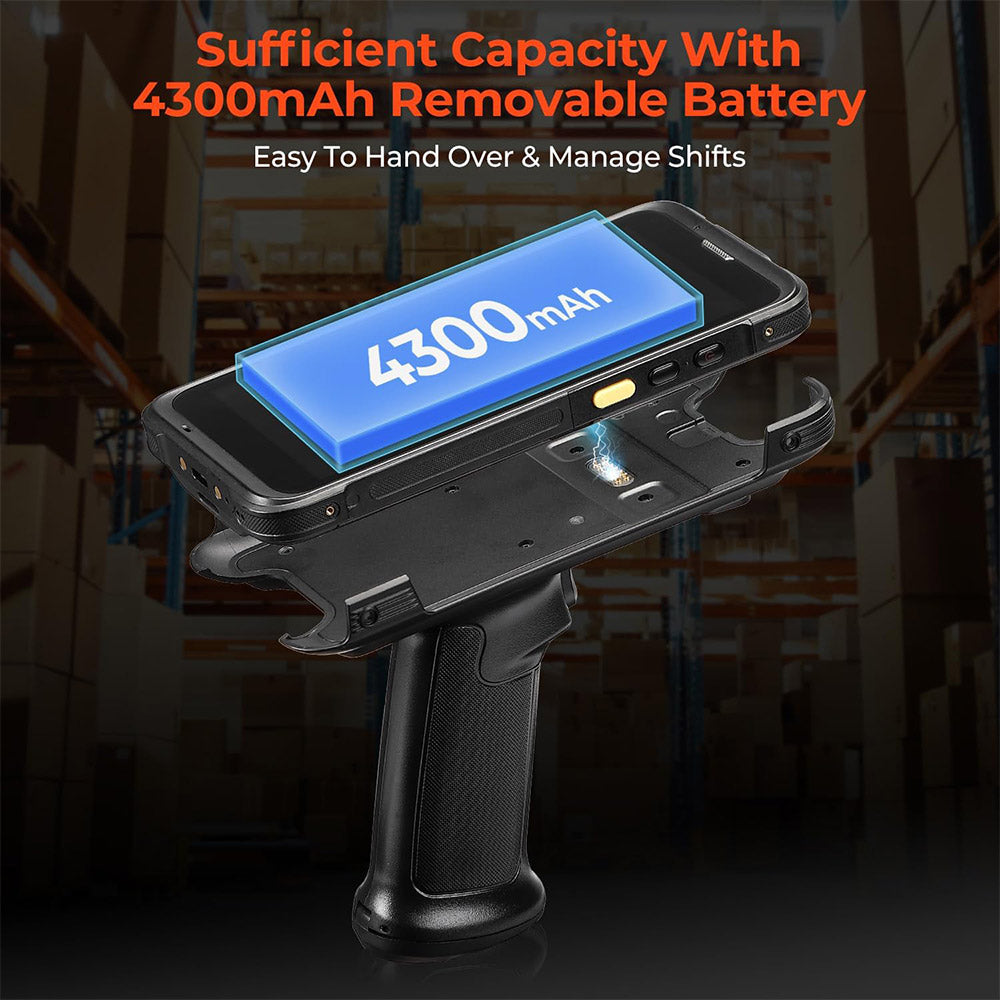

4300mAh(main) removable main battery, 5200 mAh optional pistol battery, supports QC 3.0 and RT(Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh)

Operating Temperature

-20℃ ~ 50℃

Sensor

Gravity, proximity, light, accelerometer, vibration motor

Key

key1 power key, 2 scan keys, 2 volume keys

Expand Port

1 slot for SIM card, 1 slot for SIM or TF card

SDK Development

Android SDK (Java), Tools: Android Studio/Eclipse/Xamarin

Product Certification

CE-RED, FCC-ID, FCC-SDOC, ROHS, IC, IP65, MIL-STD-810H, 2m drop

Storage Temperature

-40℃~ 70℃

Environment Humidity

5% RH – 95% RH non condensing

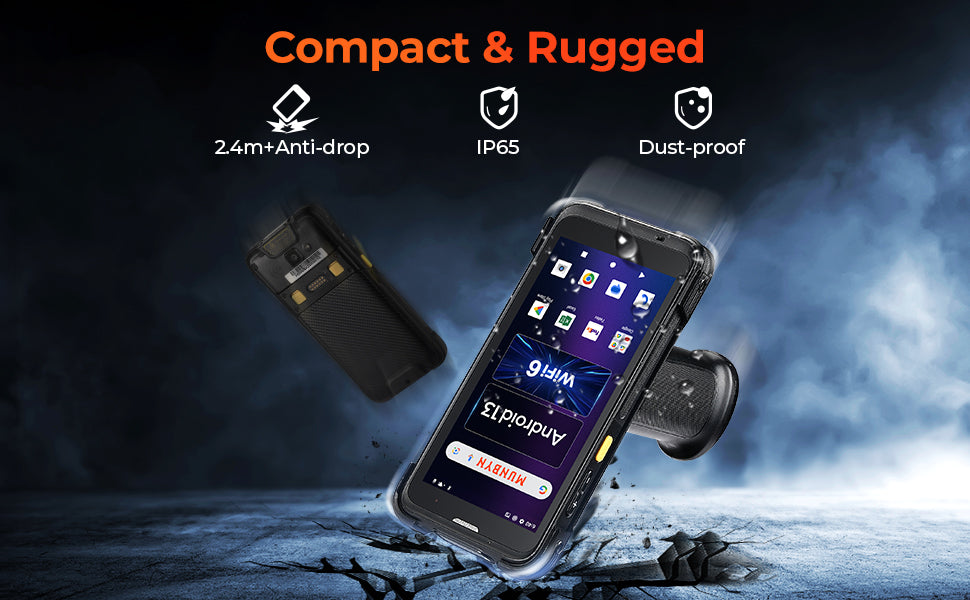

Drop Specifications

Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range; Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper

Special Features

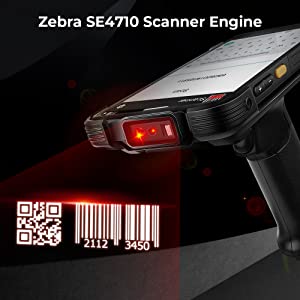

Zebra SE4710 Scanner Engine; IP65 Rated

MUNBYN Android 13 & Wi-Fi 6 Bar code Scanner, Raise Your Working Efficiency!

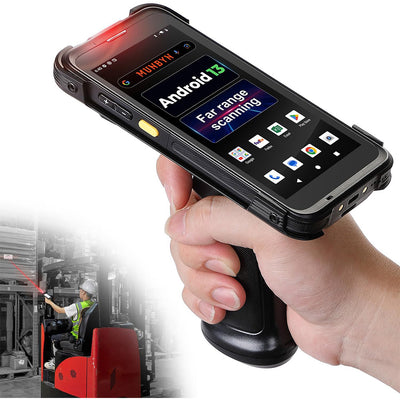

  • Scan it faster, scan it more comfortably! The Android scanner is equipped with an ergonomic pistol grip, you can get the barcode by pressing the button, which meets your all-day needs.
  • The Android data terminal offers a converged solution to cater to the demand of cycle counting, on-demand delivery, asset management, etc.
  • The Android barcode scanner is widely used for warehouse management, logistics, retail, manufacturing, agriculture, and e-commerce.
  • Specific applications of the intelligent Android mobile computer are as below: commodity/ quantity/ inventory checks, item locator, assisted selling, items tracking, inventory/ asset management, payment, etc.
  • We could also help you Test Your Apps Before You Purchase in Bulk.
  • DataWedge software is not supported.
  • We offer 24/7 technical support. You can find our contact information either in the user manual or on the device’s startup screen to get in touch with our technical engineers.

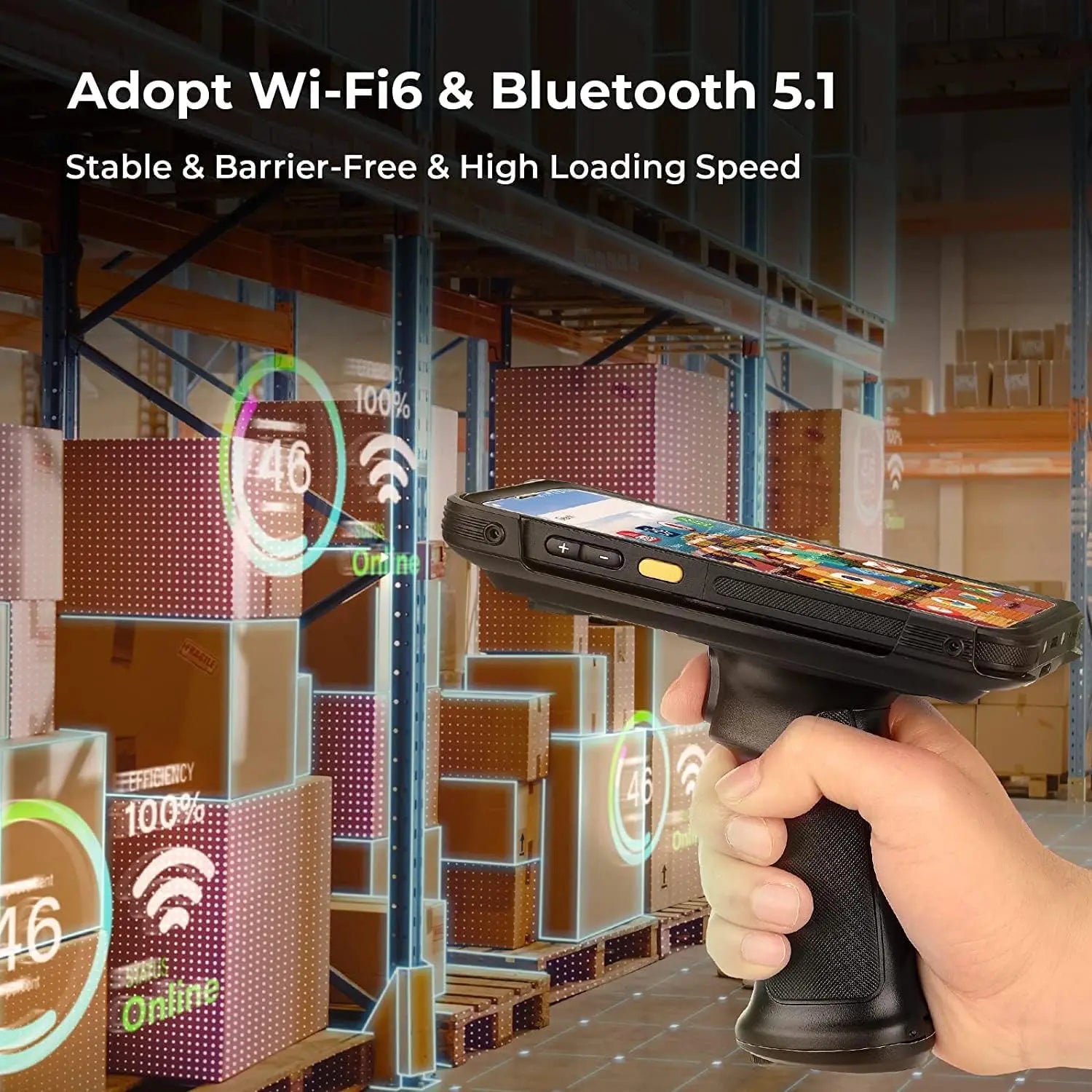

  • It’s triple the speed, and Wi-Fi 6 offers much faster data rates. It can raise 300% efficiency when downloading or transferring files.
  • Where Wi-Fi 5 (802.11ac) maxes out at 1200 Mbps, Wi-Fi 6 offers a maximum possible data rate of 1800 Mbps, potentially tripling the speed of its predecessor, Wi-Fi 5,6, and providing support for more bandwidth-intensive applications.

Compared to WiFi 5:

  1. More Capacity Up to 4 times;
  2. Data Throughput Increase Up to 40%;
  3. Backwards Compatibility Up to 100%.

360° Protection Surround The device

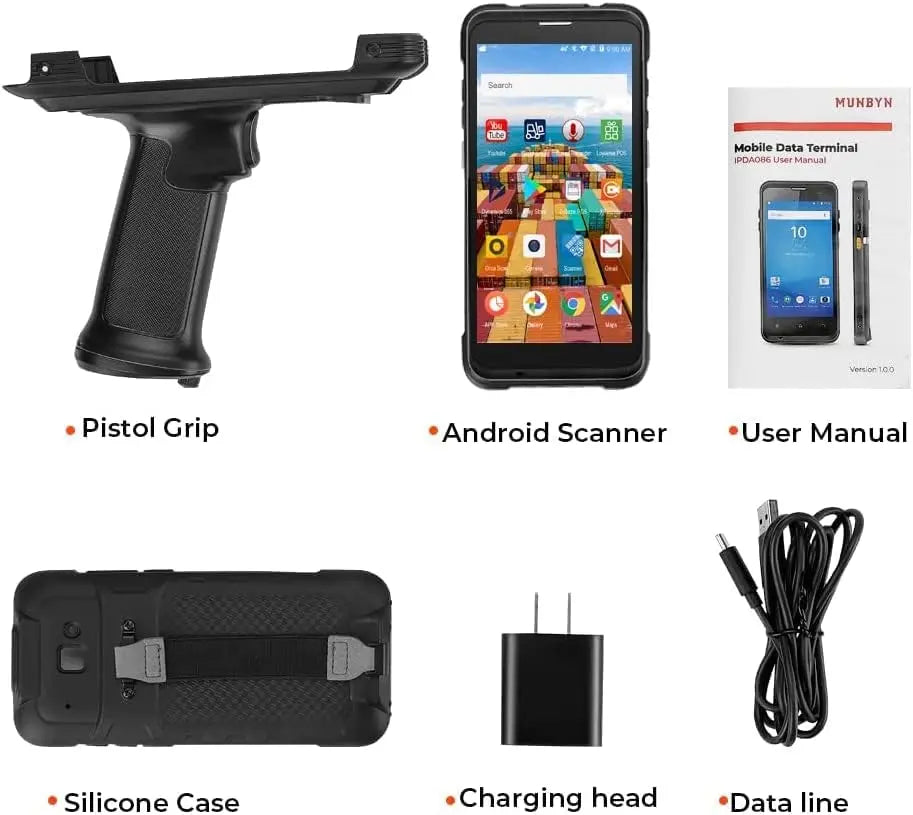

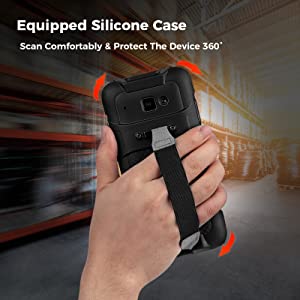

Besides the pistol grip, the package comes with an extra case that can protect the device from dropping.

A belt strap gives users a better experience, easy to hold in retail, logistics, and so on.

Compact Yet Modern Form-factor

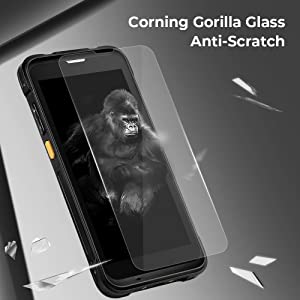

  • This Android scanner adopts Corning Gorilla glass, crashed-durable, enhancing the using life of the screen.
  • Meanwhile with a 5.5-inch full touch display, easier to catch each piece of information easily.
  • What's more, it comes with a free screen film for replacement.

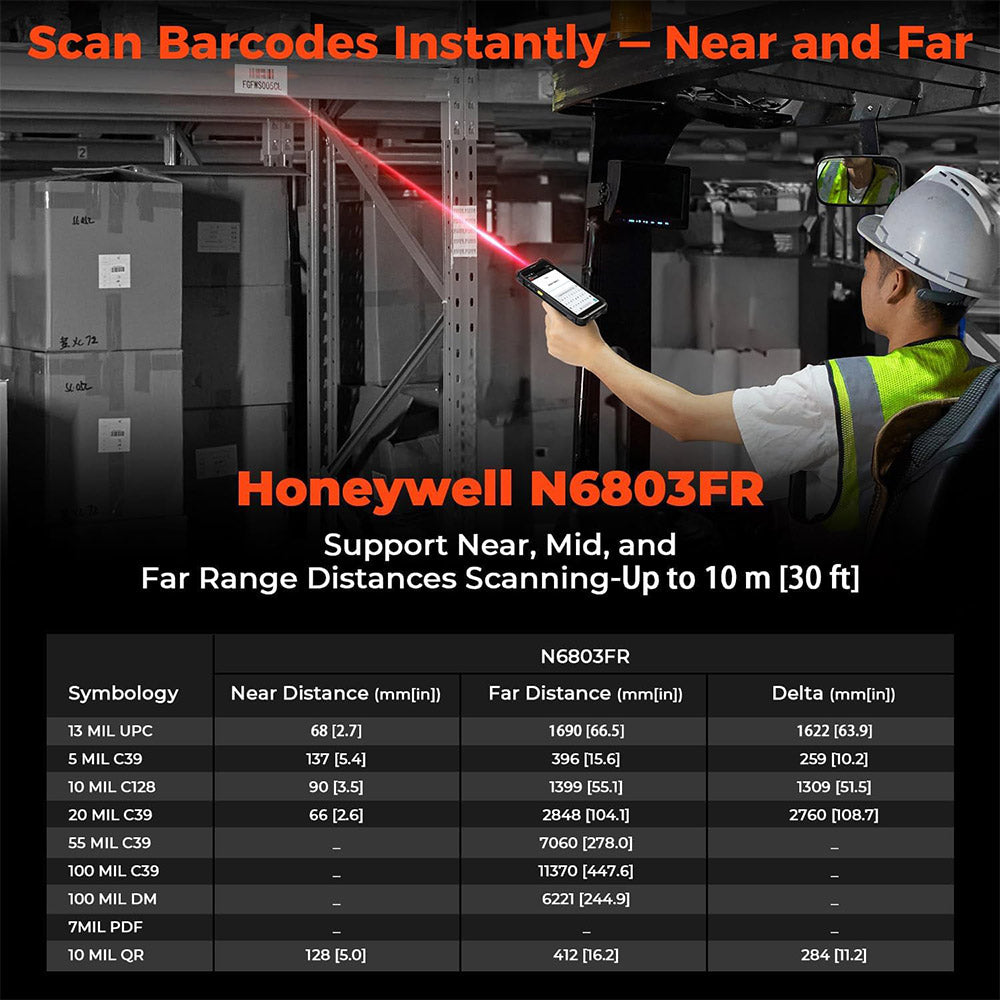

Advanced Scanner Engine

Support these kinds of barcodes:

2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR-code, Micro QR-code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

1D: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

Download the Digital User Guide



User Manual

Download Now >>
